Technical Specifications
| Module Specifications |
| Module Size | 320mm(W)*160mm(H) |
| Pixel Pitch | 1.538 mm |
| Pixel Density | 422,500 dot/㎡ |
| Pixel Configuration | 1R1G1B |
| LED Specification | SMD1212 |
| Pixel Resolution | 208 dot*104 dot |
| Max Power Consumption | 33W |
| Panel Weight | 0.3KG |
| Cabinet Specifications |
| Cabinet Size | 640mm*480mm |
| Cabinet Resolution | 384 dot * 216 dot |
| Quantity of Panel | 6pcs |
| Hub Connecting | HUB75-E |
| Material | Die-casting aluminum cabinet |
| Maintenance Method | Front/Back service |
| Best Viewing Angle | 170/120° |
| Power Supply | AC110V/220V-5V40A |
| Max Power Consumption | 976W/㎡ |
| Average power consumption | 488W/m² |
| Technical Signal Index |
| Driving IC | ICN1065 |
| Scan Rate | 1/52S |
| Refresh Frequency | 3840-7680HZ/S |
| Display Color | 4096*4096*4096(16bit) |
| Contrast Ratio | 4000:1 |
| Brightness | 600-800 cd/㎡ |
| Life Span | 100000Hours |
| Best Viewing Distance | 1-30M |
| Operating Temperature | -10℃~60℃ |
| Operating Humidity | 10-70% |
| IP Protective Index | IP43 |
Core Features and Advantages
- Extremely detailed picture, no graininess upon viewing. High pixel density ensures sharpness and clarity even at close range, completely eliminating the graininess of traditional LED displays and achieving a display effect comparable to LCD screens.
- Truly seamless splicing, complete and unified image. Inherently without physical seams, it maintains the integrity and continuity of any displayed image, providing a visually immersive experience far superior to DLP and LCD splicing solutions with seams.
- True color reproduction, outstanding display effect. Boasting high color saturation, high refresh rate, and high grayscale levels, it delivers vibrant and realistic colors with smooth transitions, eliminating water ripple interference even during image capture.
- Stable, energy-efficient, easy to maintain, flexible and convenient installation. High reliability, supports front maintenance for space saving; adjustable brightness for environmental friendliness; flexible and diverse installation methods perfectly adaptable to various high-end indoor application scenarios.
Application Scenarios
Command and Control Centers: Used in locations requiring 24/7 uninterrupted operation and high-density information visualization, such as public security, traffic police, emergency response, power, energy, and military sectors. They can clearly and seamlessly display critical information such as GIS maps, surveillance videos, and large data screens.
Broadcast and Television Studios: Serving as a large background screen for news broadcasts, variety shows, and weather forecasts, offering true-to-life, uniform colors without the moiré patterns and water ripples often seen in camera photography, effectively enhancing the visual effects and sophistication of program production.

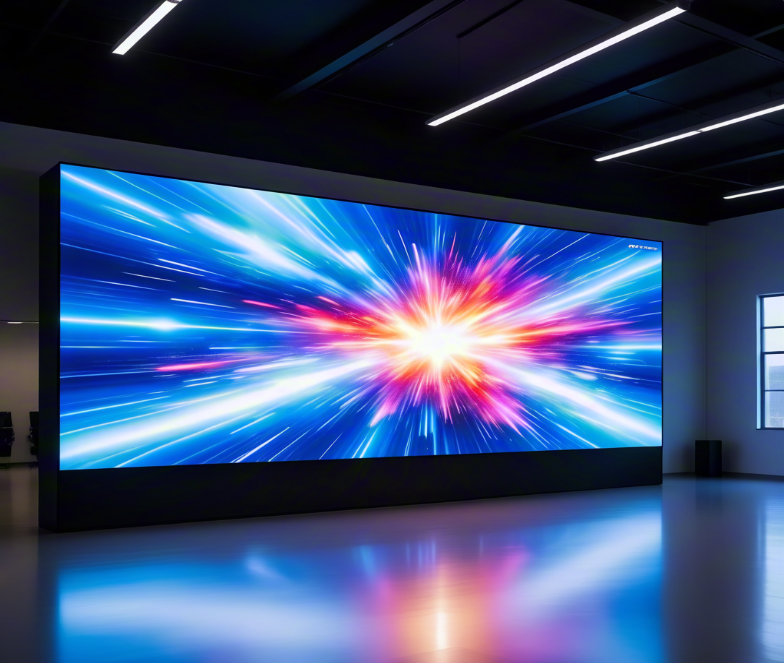

High-End Conference and Auditoriums: Replaces traditional projectors in corporate boardrooms, large auditoriums, and remote video conferencing rooms. Supports high-definition video playback and seamless display of PPTs, documents, and data charts, improving meeting efficiency and viewing experience.
Commercial Display and Brand Spaces: Applied to corporate showrooms, brand flagship stores, high-end retail stores, museums, science and technology museums, etc. Used to showcase corporate image, product promotion, and interactive experiences, attracting audiences with its stunning visual impact.
Certification
Packaging

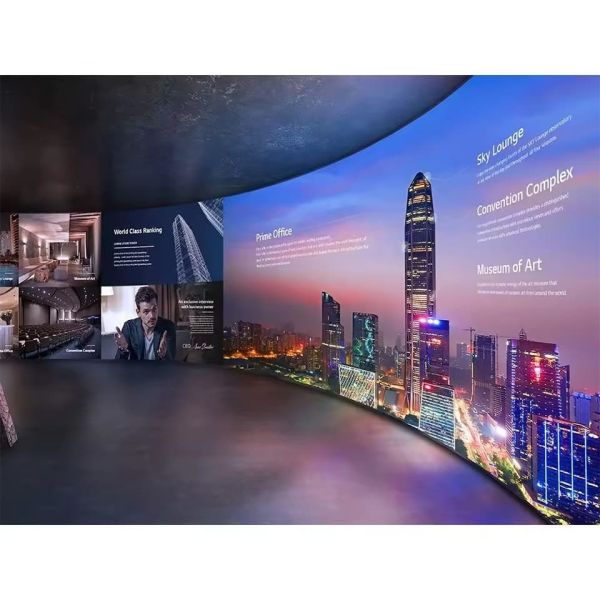

Case Example
