Brand Name : LEDKING
Model Number : P3.076
Certification : CE FCC ISO
Place of Origin : China
MOQ : 10pc
Price : $324/pc
Payment Terms : T/T
Supply Ability : 10pc 15days
Delivery Time : 15days
Packaging Details : Plywood case
Panel Dimension : 320mm(W) * 160mm(H)
Pixel Density : 105688 dot/m2
LED specification : SMD2121
Cabinet size : 960mm*960mm
Driving IC : ICN 1065
Scan Rate : 1/26S
| Parameter | Value |
|---|---|
| Panel Dimension | 320mm(W) * 160mm(H) |
| Pixel pitch | 3.076mm |
| Pixel Density | 105688 dot/m2 |
| Pixel configuration | 1R1G1B |
| LED specification | SMD2121 |
| Pixel resolution | 104dot * 52 dot |
| Max power consumption | 20W |
| Panel weight | 0.45KG |
| Parameter | Value |
|---|---|
| Cabinet size | 960mm*960mm |
| Cabinet Resolution | 312 dot * 312 dot |
| Quantity of panel | 18pcs |
| Hub connecting | HUB75-E |
| Material | Simple Iron cabinet |
| Maintenance Method | Front/Back service |
| Best viewing angle | 140/120 |
| Screen power supply | AC110V/220V - 5V40A |
| Max power capacity | 651 W/m2 |
| Average power consumption | 200W/m2 |
| Panel weight | 26KG |
| Parameter | Value |
|---|---|
| Driving IC | ICN 1065 |
| Scan Rate | 1/26S |
| Refresh frequency | 3840 HZ/S |
| Brightness | 800-1000cd/m2 |
| Life span | 100000Hours |
| Display color | 4096*4096*4096 |
| Contrast Ratio | 4000:1 |
| Control distance | <100M |
| Best viewing distance | 3-30M |
| Operating temperature | -10C°~45C° |
| Operating Humidity | 10-90 % |
| IP protective index | IP43 |





|
|

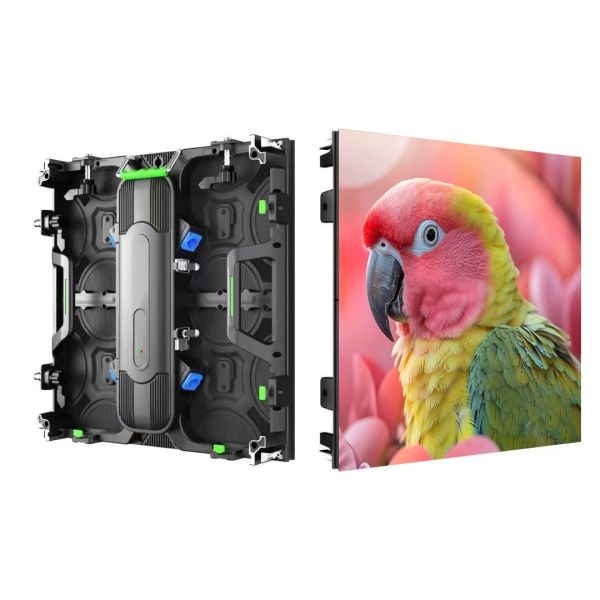

Professional Indoor LED Display Screen For Meeting Room Projects Indoor Led Advertising Screen Indoor Led Display Panel Images |
