IP65 Waterproof High-Brightness P6 P8 P10 LED Screen for Shopping Malls and Outdoor Advertising Outdoor 3D Cured LED Screen

Shenzhen Led King Technology Co., Ltd.
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now

IP65 Waterproof High-Brightness P6 P8 P10 LED Screen for Shopping Malls and Outdoor Advertising Outdoor 3D Cured LED Screen

  • 1
  • 2
  • 3

Brand Name : LED King

Model Number : Outdoor P6 P8 P10

Certification : CE FCC ISO

Place of Origin : Guangdong, China

MOQ : 1

Price : $336

Payment Terms : T/T

Supply Ability : According to your needs

Delivery Time : 15days

Packaging Details : Wooden case

Control system : NOVA Star

Life Span : 100000Hours

IC : Chipone ICN2153

Cabinet Material : Waterproof Iron

Panel Weight : 40kg

Power Supply : AC110V/220V-5V60A

Contact Now

1. Parameter
Module Module Size 320mm(W)*160mm(H)

Pixel Pitch 6mm/ 8mm /10mm

Pixel Density 27777dot /㎡   15625 dot/m²  10000 dot/m²

Pixel Configuration 1R1G1B

LED Specification SMD3535

Pixel Resolution 54dot*26dot  40dot*20dot  32dot*16dot

Max Power Consumption 45W

Panel Weight 0.55KG
Cabinet Cabinet Size 960*960mm

Cabinet Resolution 160 dot*160 dot  120dot*120dot  96dot*96dot

Quantity of Panel 18pcs

Hub Connecting HUB75-E

Material Waterproof Iron cabinet

Maintenance Method Front/Back service

Best Viewing Angle 170/120°

Power Supply AC110V/220V-5V60A

Max Power Consumption 1300W/㎡

Average power consumption 650W/m²
Technical Signal Index Driving IC ICN2153

Scan Rate 1/8S    1/5S   1/2S

Refresh Frequency 3840-7680HZ/S

Display Color 4096*4096*4096(16bit)

Contrast Ratio 4000:1

Brightness 4500-5500 cd/㎡

Life Span 100000Hours

Best Viewing Distance 6-50M

Operating Temperature -20℃~60℃

Operating Humidity 10-90%

IP Protective Index IP65
2. Core Features and Advantages
  • High brightness, resistant to strong sunlight: Utilizes high-brightness LED beads to ensure clear visibility even under direct sunlight, preventing whitening.
  • Waterproof and dustproof, rugged and durable: Typically boasts an IP65 or higher protection rating, completely preventing dust intrusion and low-pressure water jets, adapting to various harsh outdoor weather conditions (rain, snow, sandstorms).
  • Wide viewing angle: Offers wide horizontal and vertical viewing angles , ensuring excellent image quality from all directions.
  • High stability, easy maintenance: Modular design allows for quick replacement of faulty modules or cabinets, reducing maintenance costs and time.
  • Vibrant colors, dynamic display: Displays rich colors and dynamic video content, delivering a strong visual impact far superior to traditional static billboards.
  • Remote control support: Enables remote cluster management via network, allowing real-time updates of playback content, offering convenient and efficient operation.
IP65 Waterproof High-Brightness P6 P8 P10 LED Screen for Shopping Malls and Outdoor Advertising Outdoor 3D Cured LED Screen
3. Application Scenarios
  • High-end commercial street advertising: Used on the exterior walls of luxury stores and large shopping malls, displaying brand advertisements and attracting customers even at close range, showcasing a high-end brand image.
  • Hotel/corporate entrance screens: Serving as the primary window for showcasing a company's image, used to display welcome messages, corporate promotional videos, meeting directions, etc., offering high clarity and enhancing the company's prestige.
  • Large event main screens: For events such as concerts and product launches, where stage details must be clearly visible even to audiences in the middle and back rows, the P6's clarity is perfectly adequate.
  • Real estate sales offices: Displaying property information, floor plans, and promotional videos, providing customers with a stunning visual experience.
  • Building exterior wall advertising: Installed on the exterior walls of office buildings or residential buildings for commercial advertising, possessing strong visual appeal amidst urban traffic and pedestrian flow.
  • Corporate image walls/logos: Displaying the company name and logo at the entrance of factories and industrial parks, both eye-catching and cost-effective.
  • Gas Station Media Advertising: Drivers and passengers have ample time to view screen content while refueling and resting; the P8's clarity is sufficient to convey effective information.
  • Community Notice Screens: Used for publishing policy notices, public service announcements, etc., balancing effectiveness and budget.
  • Highway/Main Road Billboards: Vehicles pass by at high speeds, and viewing distances are extremely long; the P10's large pixels and high brightness ensure advertising information is captured instantly.
  • City Square/Stadium Large Screens: Serving as city landmarks or event information displays, serving a vast audience with a wide field of vision and an impressive presence.
  • Station/Dock Information Guidance Screens: Used to display real-time information such as train and flight schedules; large, eye-catching fonts ensure easy visibility to large numbers of passengers from a distance.
  • Large Construction Site Hoarding Advertising: Cost control is key; the P10 can achieve large-area advertising coverage at a relatively low cost.
4. Certifications

The product has obtained CE, FCC, and ISO certifications.

5. Packaging Ways
IP65 Waterproof High-Brightness P6 P8 P10 LED Screen for Shopping Malls and Outdoor Advertising Outdoor 3D Cured LED Screen

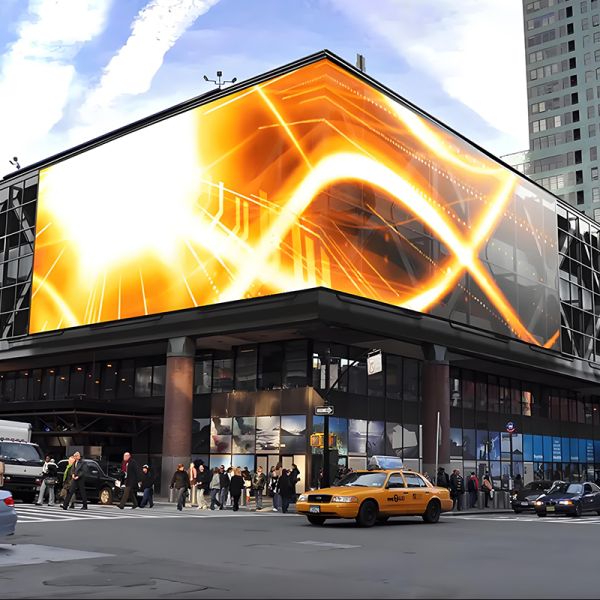

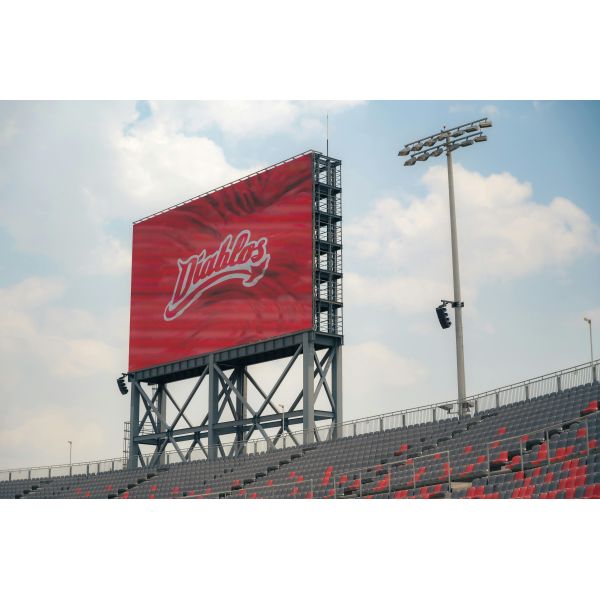

6. Case
IP65 Waterproof High-Brightness P6 P8 P10 LED Screen for Shopping Malls and Outdoor Advertising Outdoor 3D Cured LED Screen
